| Brand | : | C-Data |
| Jenis | : | FTTH OLT |
| Kode | : | FD1602S-B1 |
| Harga | : | Rp 4.400.000,00 |

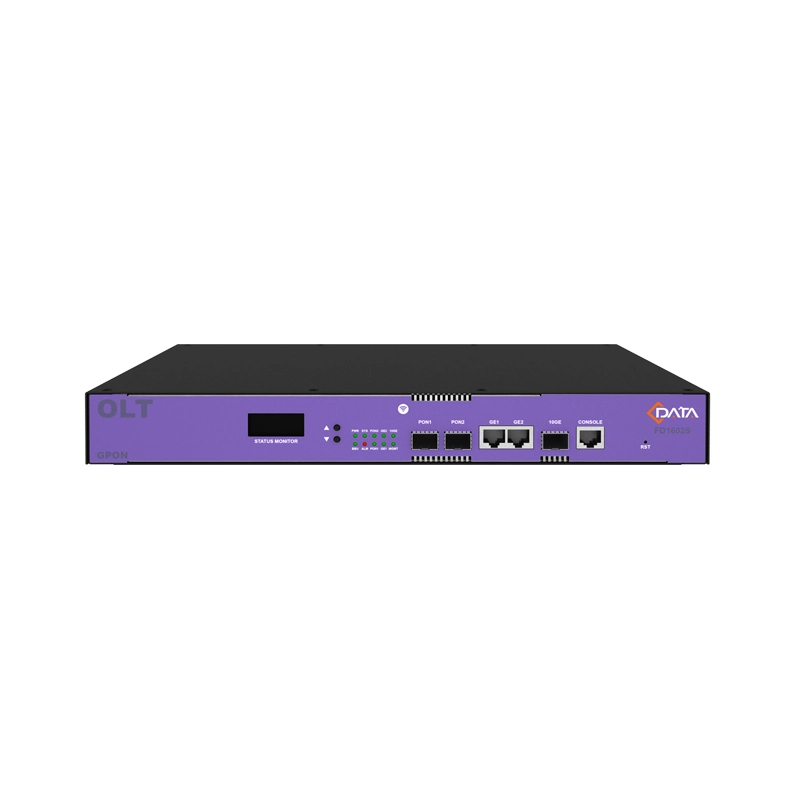

GPON OLT FD1602S-B1 CDATA completely meet relative standard of ITU G.984.x and FSAN, the device with 2 uplink Ethernet ports and 1 10 Gigabit uplink port and 2 GPON port.Each GPON port supports the splitting ratio of 1:128, The GPON system supports up to 256 terminal connections.
Specification
| Model | FD1602S-B1 |
| Uplink Port | 2 x 10/100/1000M auto-negotiation Ethernet ports 1 x 10 Gigabit uplink port |
| PON Port | Quantity : 2 |
| Physical interface : SFP slot | |
| Interface type : GPON: ITU-TG.984.2 Class B+/Class C+ | |
| Max splitting ratio : GPON: 1:128 | |
| Management Port | 1 CONSOLE local management port |
| Transmission distance | 20KM |
| Port rate | GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps |
| Wavelength | Forwarding: 1490nm Receiving: 1310nm |
| Interface type | SC/UPC |
| Fiber type | 9/125μm SMF (Single Mode Fiber) |
| Light transmission power | Class B+ +1.5 ~ +5dBm Class C+ +3 ~ +7dBm |
| Receiving sensitivity | Class B+ : -28dBm Class C+ : -30dBm |
| Saturation power | Class B+ -8dBm Class C+ -12dBm |
| Backplane Bandwidth | 31.5G |
| Power supply | AC : 100V ~ 240V, 47~63Hz DC : External adapter mode 12V/2.5A |
| Working temperature | -15 ~ 50 C |
| Storage temperature | -40 ~ 85 C |
| Ambient humidity | 5 ~ 90% (Non-condensing) |
Seluruh harga yang tercantum di atas belum termasuk PPN 11% dan biaya pengiriman.
Jika Anda membutuhkan faktur pajak untuk transaksi ini, pastikanlah bahwa Anda telah menginformasikan Nama Perusahaan dan NPWP dengan benar kepada kami sebelum melakukan order.
