| Brand | : | V-Sol |
| Jenis | : | FTTH OLT |
| Kode | : | V1601E02-DP |
| Harga | : | Rp 4.000.000,00 |

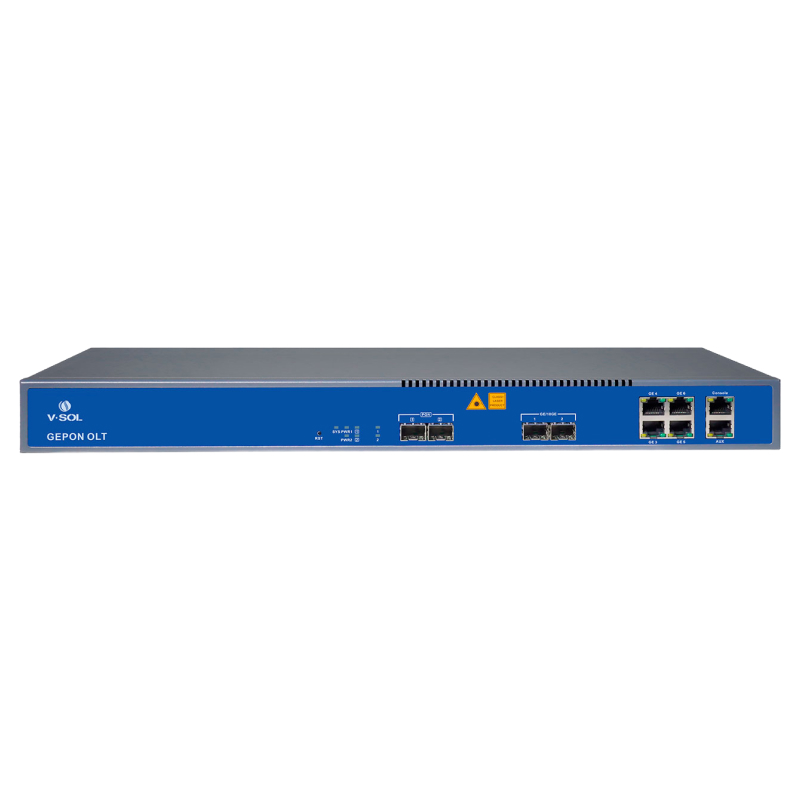

V1601E02-DP vsol is a compact and cost-effective EPON OLT product. It supports functionalities such as STP/RSTP/MSTP, IGMP Snooping, and VLAN Translation/Q-in-Q, ensuring network stability and security. Additionally, it offers features like port mirroring, L3 static routing, RIP/OSPF dynamic routing, and can be efficiently deployed and managed through SNMP/Telnet/CLI/WEB/SSHinterfaces.
2*EPON, 4*RJ45+2*SFP/(SFP+)
*Sudah termasuk 2x SFP 9dBm
Specification
| Model | V1601E02-DP |
| Uplink Port | QTY : 6 |
| RJ45(1G) : 4 | |
| SFP(1G)/SFP+(10G) : 2 | |
| EPON Port | QTY : 2 |
| Physical Interface : SFP Slots | |
| Supported PON module level : PX20, PX20+, PX20++, PX20+++,PX20++++ | |
| Max splitting ratio : 1:64 | |
| Management Port | 1*10/100 BASE-T out-band port, 1*CONSOLE port |
| Backplane Bandwidth (Gbps) | 128 |
| Port Forwarding Rate(Mpps) | 38.688 |
| PON Port Specification | Transmission Distance : 20KM |
| EPON port speed”Symmetrical 1.25Gbps | |
| Wavelength TX 1490nm RX 1310nm | |
| Connector : SC/UPC | |
| Fiber Type : 9/125μm SMF | |

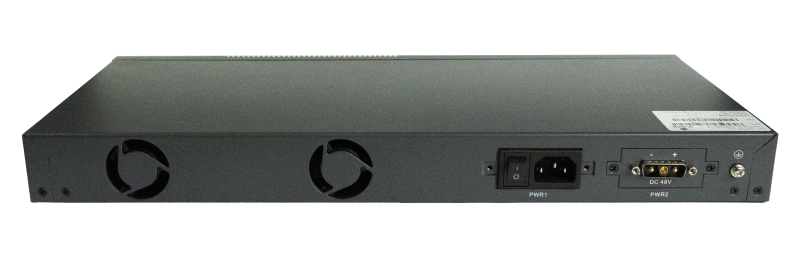

| Power supply | AC : Working Voltage Range: 100~240V, Rated Voltage: 110V/220V DC : 48V |
| Management Mode | SNMP/Telnet/CLI/WEB/SSH v2 |
| Working temperature | -20 ~ +60 C |
| Storage temperature | -40 ~ +70 C |
| Relative Humidity | 5 ~ 95% (Non-condensing) |
| Dimension (L*W*H) | 442 x 200 x 43.6 mm |
Seluruh harga yang tercantum di atas belum termasuk PPN 11% dan biaya pengiriman.
Jika Anda membutuhkan faktur pajak untuk transaksi ini, pastikanlah bahwa Anda telah menginformasikan Nama Perusahaan dan NPWP dengan benar kepada kami sebelum melakukan order.
