| Brand | : | C-Data |
| Jenis | : | FTTH OLT |
| Kode | : | FD1616S-B2 |
| Harga | : | Rp 27.320.000,00 |

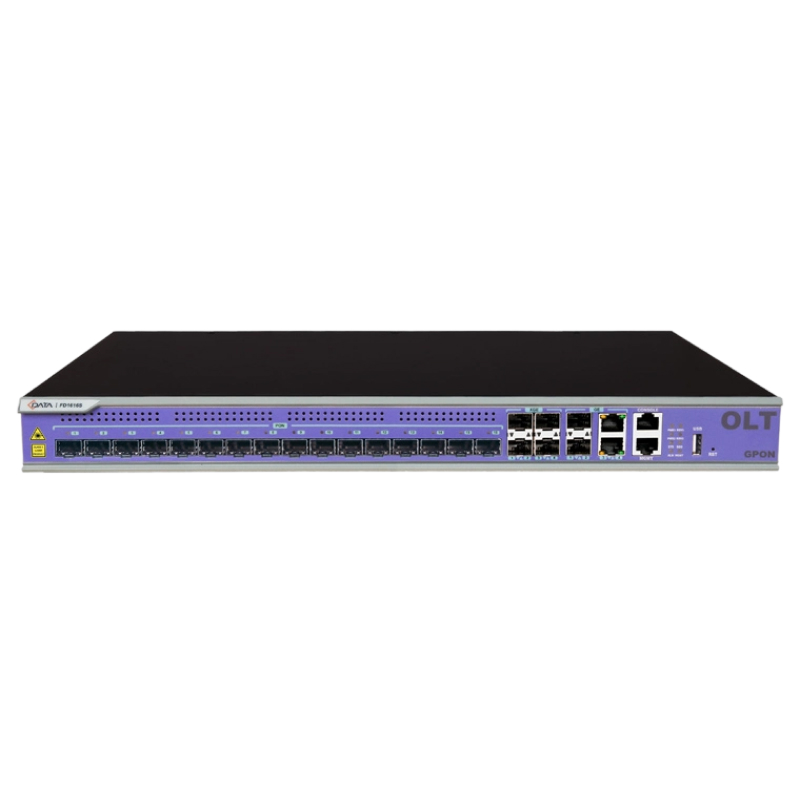

GPON OLT FD1616S-B2 sepenuhnya mendukung standar ITU G.984.x dan FSAN. Perangkat rack-mounted 1U dengan dilengkapi 1 port USB, 2 port uplink Gigabit Ethernet, 2 port uplink SFP, 4 port uplink SFP+ 10G, serta 16 port GPON. Setiap port GPON mendukung rasio splitting hingga 1:128, sehingga sistem GPON ini mampu melayani hingga 2048 terminal koneksi.
Specification
| Model | FD1616S-B2 |
| Uplink Port | 2 10/100/1000M auto-negotiation Ethernet ports |
| 2 SFP interfaces | |
| 10-Gigabit : 4 SFP+ interfaces | |
| PON Port | Quantity : 16 |
| Physical interface : SFP slot | |
| Interface type : ITU-TG.984.2 Class B+/Class C+ | |
| Max splitting ratio : GPON: 1:128 | |
| Management Port | 1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port |
| USB Port | 1 USB interface (It’s used to backup configuration, upgrade program and record log information) |
| Transmission distance | 20KM |
| Port rate | GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps |
| Wavelength | Forwarding: 1490nm Receiving: 1310nm |
| Interface type | SC/UPC |
| Fiber type | 9/125μm SMF (Single Mode Fiber) |
| Light transmission power | Class B+ : +1.5~ +5dBm Class C+ : +3 ~ +7dBm |
| Receiving sensitivity | Class B+ : -28dBm Class C+ : -30dBm |
| Saturation power | Class B+ -8dBm Class C+ -12dBm |
| Network management method | Support CLI/WEB/Telnet/SSH/MQTT |
| Backplane Bandwidth | 148G |

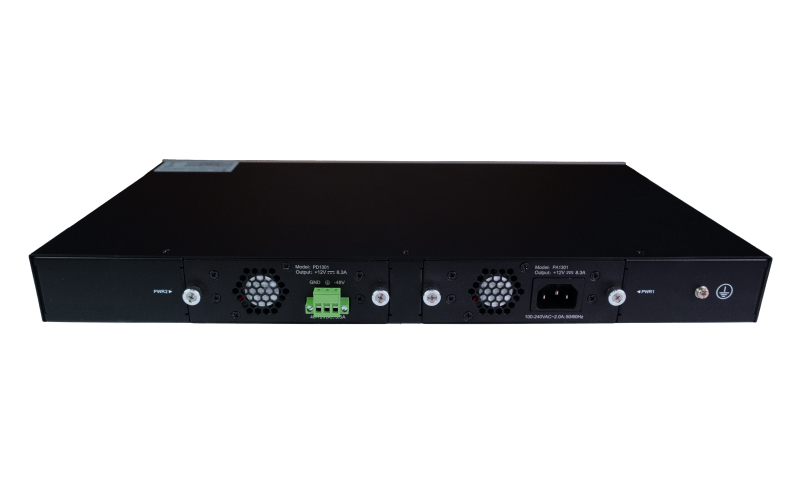

| Power supply | AC : 100V ~ 240V, 47~63Hz DC : -40V ~ -72V |
| Working temperature | -15 ~ 50 C |
| Storage temperature | -40 ~ 85 C |
| Ambient humidity | 5 ~ 90% (Non-condensing) |
