| Brand | : | C-Data |
| Jenis | : | FTTH OLT |
| Kode | : | FD1801S-C1 |
| Harga | : | Rp 6.810.000,00 |

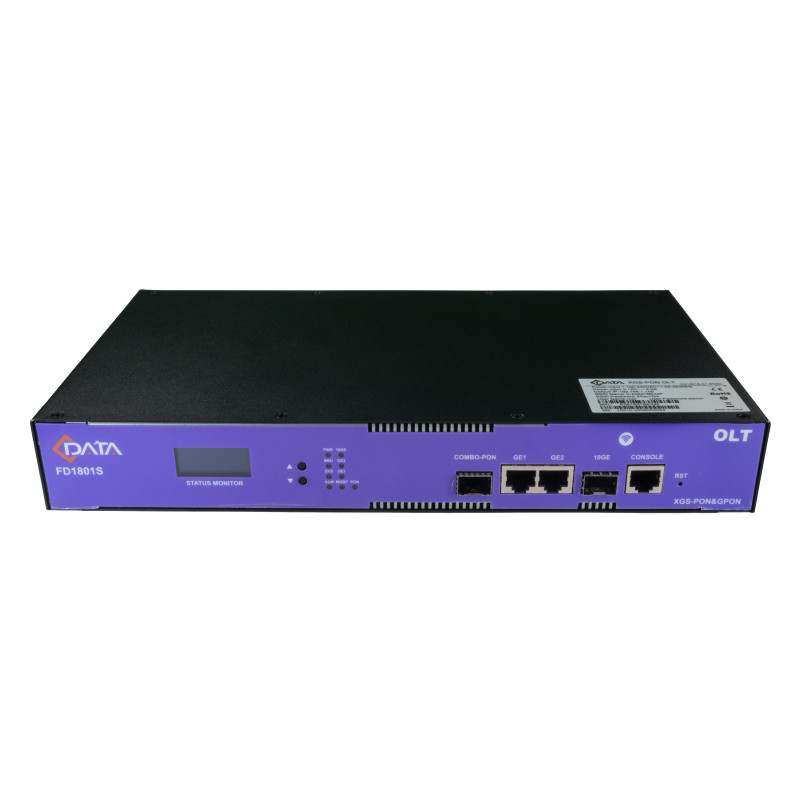

FD1801S-C1 adalah perangkat OLT rack-mounted 1U berstandar ITU-T G.9807.1 yang dilengkapi 2 port Gigabit Ethernet dan 1 port SFP+ 10G uplink port. Pada port PON memiliki COMBO PON (1 XGS-PON & GPON) dengan split ratio 1:128.
*Belum termasuk SFP module.
Fitur :
- 1*Combo PON port up to 1:128 split ratio.
- Symmetrical 10Gbps transmission rates.
- Uplinks dengan 1 port SFP+ 10G dan 2 port Gigabit Ethernet.
- Jarak transmisi up to 20km.
Spesifikasi
| Model | FD1801S-C1 |
| Uplink Port | 2* 10/100/1000M auto-negotiation Ethernet ports |
| 1* SFP+ interfaces | |
| PON Port | Quantity : 1 |
| Physical interface : SFP slot | |
| Max splitting ratio : GPON: 1:128 | |
| Management Port | 1* CONSOLE local management port |
| Transmission distance | 20KM |
| Port rate | XGS-PON: Downstream: 10Gbps Upstream: 10Gbps GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps |
| Wavelength | XGS-PON: Forwarding: 1577nm Receiving: 1270nm GPON: Forwarding: 1490nm Receiving: 1310nm |
| Interface type | SC/UPC |
| Fiber type | 9/125μm SMF (Single Mode Fiber) |
| Light transmission power | XGS-PON&GPON COMBO 5~8dBm (9.953G) 3~7dBm (2.488G) |
| Receiving sensitivity | XGS-PON&GPON COMBO ≥-29dBm (9.953G) ≥-30.5dBm (2.488G) ≥-30dBm (1.244G) |
| Saturation power | XGS-PON&GPON COMBO ≤-8dBm (9.953G) ≤-10dBm (2.488G) ≤-12dBm (1.244G) |
| Network Management Method | Support CLI, SNMP, TELNET, SSH, WEB |
| Backplane Bandwidth | 44G |
| Power supply | AC: 100V ~ 240V, 47~63Hz |
| DC: External adapter mode 12V/2.5A | |
| BBU (Backup Battery Unit): DC: 11V?14V. Function: When the regular power supply is cut off, it can be switchedtothebackup power supply, and when the regular power supply resumes, it will switch back to the regular power supply and charge the backuppower supply | |
| Maximum Power | <14W |
| Working temperature | -15 ~ 50 C |
| Storage temperature | -40 ~ 85 C |
| Ambient humidity | 5 ~ 90% (Non-condensing) |
Seluruh harga yang tercantum di atas belum termasuk PPN 11% dan biaya pengiriman.
Jika Anda membutuhkan faktur pajak untuk transaksi ini, pastikanlah bahwa Anda telah menginformasikan Nama Perusahaan dan NPWP dengan benar kepada kami sebelum melakukan order.
