| Brand | : | TP-Link Omada |
| Jenis | : | Switch Managed POE |
| Kode | : | ES220GP |
| Harga | : | LOGIN UNTUK MELIHAT HARGA KHUSUS |

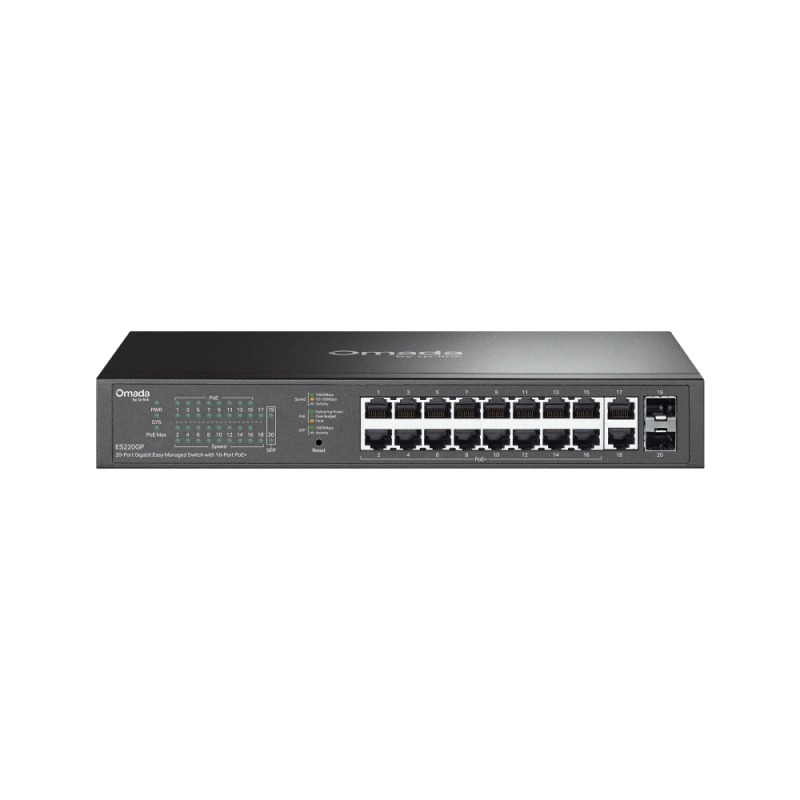

TP-LINK ES220GP OMADA merupakan switch layer 2 dengan casing Desktop/Rackmount, 18 port Gigabit PoE+ (16 port support 802.3af/at PoE+) dengan max PoE budget 150 W (up to 30 W per port) dan 2 port SFP 1G.
Produk ini merupakan produk Fix Price. Pembelian produk tidak dapat menggunakan diskon apapun.
Spesifikasi
| Model | ES220GP |
| HARDWARE FEATURES | |

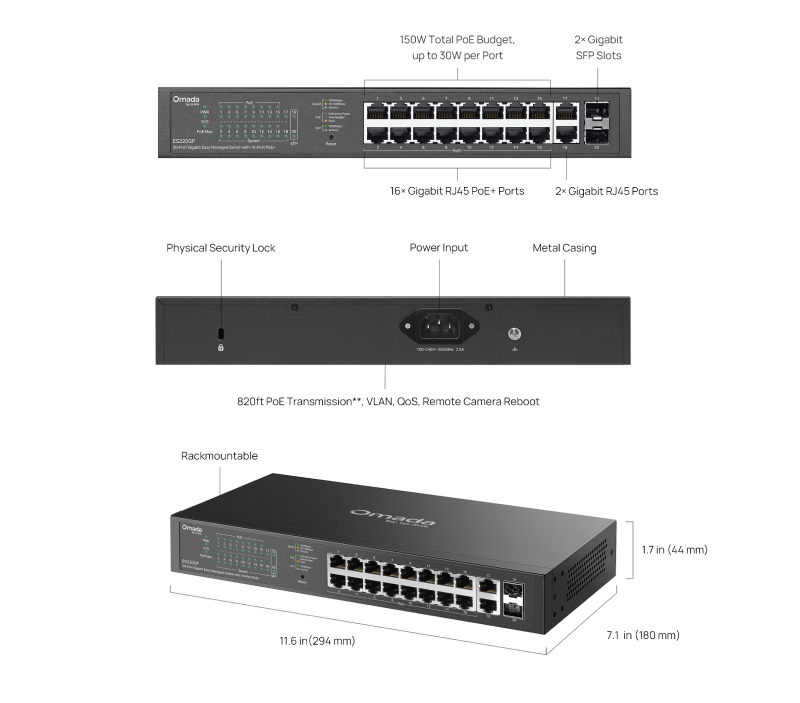

| Interface | • 18× 10/100/1000 Mbps PoE+ RJ45 Ports (16× 802.3af/at-compliant PoE+) • 2× Gigabit SFP Slots • Auto-Negotiation/Auto MDI/MDIX |
| Fan | Fanless |
| Physical Security Lock | Yes |
| Power Supply | 100–240V AC, 50/60Hz 2.5A |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 16 Ports • PoE Budget: 150W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery |
| Dimensions ( W x D x H ) | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
| Surge Protection | ±6 kV |
| Mounting | Desktop/Rackmount |
| Max. Power Consumption | 14.01 W (with no PD connected) @ 220V/50Hz 25 °C 16.25 W (with no PD connected) @ 110V/60Hz 25 °C 176.87 W (with 150 W PD connected) @ 220V/50Hz 25 °C 182.43 W (with 150 W PD connected) @ 110V/60Hz 25 °C |
| Max. Heat Dissipation | 47.64 BTU/hr (with no PD connected) @ 220V/50Hz 25 °C 55.25 BTU/hr (with no PD connected) @ 110V/60Hz 25 °C 601.36 BTU/hr ( with 150 W PD connected) @ 220V/50Hz 25 °C 620.27 BTU/hr ( with 150 W PD connected) @ 110V/60Hz 25 °C |
| Packet Buffer Memory | 4 Mbit |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.76 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 15 KB |
| Transmission Method | Store and Forward |
| SOFTWARE FEATURES | |
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| OTHERS | |
| Certification | CE, FCC |
| Package Content | • ES220GP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide |
| Environment | • Operating Temperature: -5–40C (23–104F) • Storage Temperature: -40–70C (-40–158F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
